AUTOMATIC SWITCH-OVER
QUICK TRANSFER TIME
GENERATOR COMPATIBLE(2).png)
AUTOMATIC VOLTAGE REGULATION (AVR)
Overview

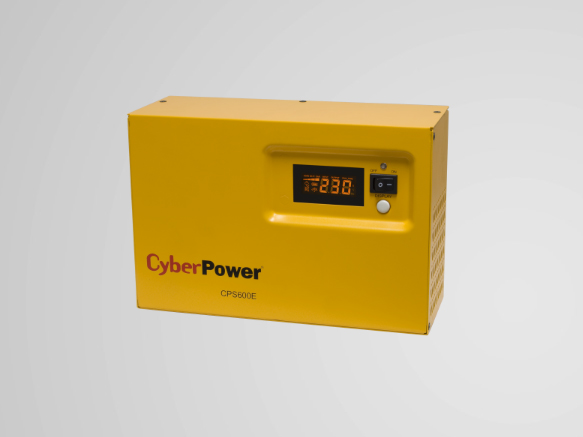

CyberPower CPS600E provides backup power when regular systems fail for a wide range of applications including household appliances, office systems, banking & retail, and industrial sites. It provides noiseless, fuel-less, and clean Pure Sine Wave output with adjustable Automatic Voltage Regulation (AVR), making it a greener and better solution over traditional generators.
The product is also generator-compatible, making it suitable for existing installations. It can accommodate unlimited number of batteries for additional runtime capacity, and the high charging current allows quick recharging up to five times faster. Users can access information of power/battery conditions and configure advanced settings, including alert of potential power problems and switching mode at the push of a button.
FEATURES
- - Generator Compatible
- - Automatic Switch-over
- - Automatic Voltage Regulation (AVR)
- - Auto-charge
- - Quick Transfer Time
- - LCD Status Display
- - LED Status Indicators
- - Brick Form Factor
Specification
GENERAL
| Phase | Single Phase |
| Capacity (VA) | 600 |
| Capacity (Watts) | 420 |
INPUT
| Generator Compatibility | Yes |
| Nominal Input Voltage ( Vac ) |
220 230 |
| Input Voltage Range ( Vac ) | 170 ~ 270 Vac |
| Input Frequency ( Hz ) |
50 ± 5 60 ± 5 |
| Input Frequency Detection | Auto-sensing |

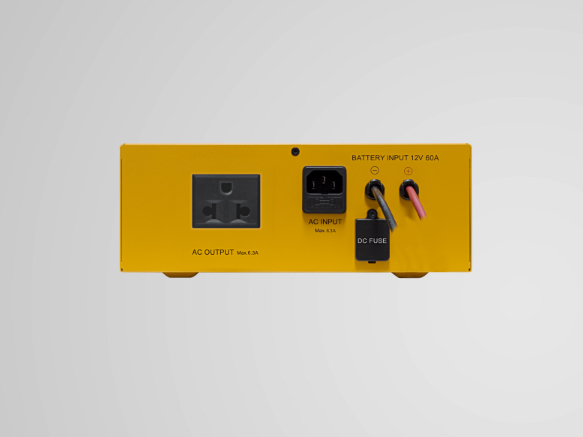

| Input Connector Type | IEC C14 |
| DC Input Voltage ( Vdc ) | 12 |
OUTPUT
| Output Waveform |
0%-40% Load, Pure Sine Wave 40%-100% Load, Simulated Sine Wave |
| Output Voltage(s) ( Vac ) |
220 ± 5% 230 ± 5% |
| Output Voltage Setting | Configurable |
| Output Frequency ( Hz ) |
50 ± 1% 60 ± 1% |
| Automatic Voltage Regulation (AVR) | Single Boost, Single Buck |
| Overload Protection (On Utility) | Fuse |
| Overload Protection (On Battery) | Internal Current Limiting |
| Outlet(s) - Total | 1 |
| Outlet Type | AS x 1 |
| Auto-charge | Yes |
| Typical Transfer Time ( ms ) | 10 |
SURGE PROTECTION & FILTERING
| Lightning / Surge Protection | Yes |
MANAGEMENT & COMMUNICATIONS

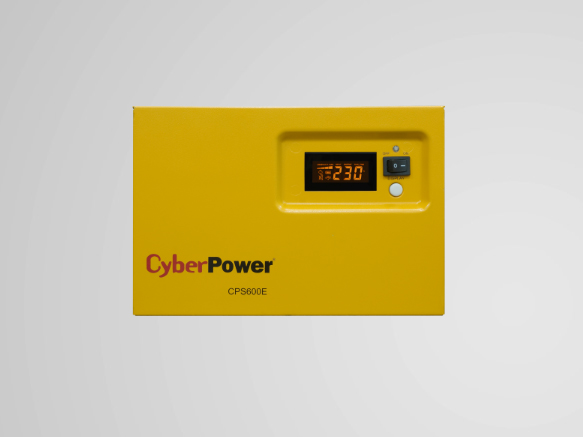

| LCD Panel | Yes |
| LCD Information Display | Operation Type , Power Status , Battery Status , Load Status , Fault & Warning |
| LCD Setting & Control | Mode Setting , Alarm Setting , Input & Output , Battery Setting , Fault & Warning |
| LED Indicators | Power On |
| Audible Alarms | Battery Mode , Low Battery , Overload , Overcharge , Overheat |
PHYSICAL
| Form Factor | Brick |
| Enclosure Construction | Metal |
| Color | Yellow |
PHYSICAL SIZE
| Dimensions (WxHxD) (mm.) | 240 x 90 x 162 |
| Weight (kg.) | 4.32 |
SHIPPING DIMENSIONS
| Dimensions (WxHxD) (mm.) | 330 x 176 x 230 |
| Weight (kg.) | 5.22 |
ENVIRONMENTAL
| Operating Temperature (°C) | 0 ~ 40 |
| Operating Relative Humidity (Non-condensing) ( % ) | 0 ~ 95 |
| Operating Elevation ( feet/meters ) | 0-10,000 feet (0-3,000 meters) |
| Storage Temperature (°C) | -15 ~ 45 |
| Storage Relative Humidity (Non-condensing) ( % ) | 0 ~ 95 |
| Storage Elevation ( feet/meters ) | 0-50,000 feet (0-15,000 meters) |
CERTIFICATIONS
| Certifications | CE |
| RoHS | Yes |
EXTERNAL BATTERY (OPTIONAL)
| Battery Type | Sealed Lead-acid |
| Battery Voltage ( Vdc ) | 12 |
WARRANTY
| Product Warranty Period (Year) | 2 |
