Capacity (VA) |
1000 |
Capacity (Watts) |
900 |
On Battery Waveform |
Pure Sine Wave |
On Battery Voltage(s) ( Vac ) |
208 ± 1%
220 ± 1%
230 ± 1%
240 ± 1%
|
Output Voltage Setting |
Configurable |
On Battery Frequency ( Hz ) |
50 ± 0.5%
60 ± 0.5%
|
Output Frequency Setting |
Configurable |
Power Factor |
0.9 |
ECO Mode Voltage Tolerance |
± 15 % |
Overload Protection |
Internal Current Limiting , Circuit Breaker , Fuse |
Overload Protection (Line Mode) |
110~120% Load for 1 min, >120% Load Immediately |
Overload Protection (Battery Mode) |
110~120% Load for 10 sec, >120% Load Immediately |
Overload Protection (Bypass Mode) |
>130% Load Immediately |
Crest Factor |
3 : 1 |
Harmonic Distortion (Linear Load) |
THD<3% |
Harmonic Distortion (Non-linear Load) |
THD<5% |
Internal Bypass |
Automatic Bypass , Manual Bypass |

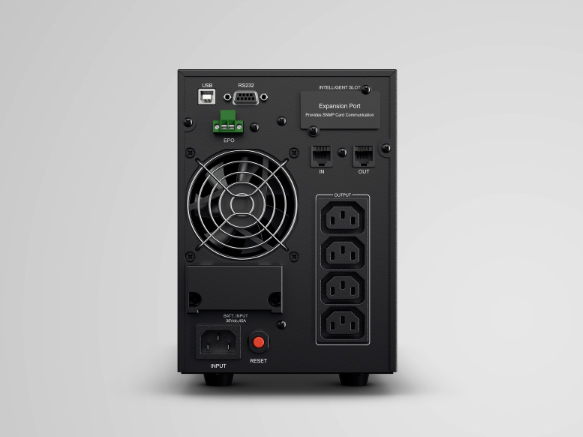

Outlet(s) - Total |
4 |
Outlet Type |
IEC C13 x 4 |
Outlet(s) - Battery & Surge Protected |
4 |
Typical Transfer Time ( ms ) |
0 |
|
|

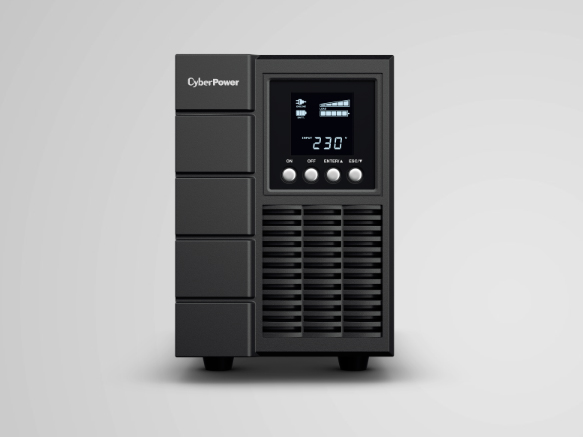

LCD Panel |
Yes |
LCD Information Display |
Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information , Event & Log |
LCD Setting & Control |
Mode Setting , Alarm Setting , Input & Output , Battery Setting |
HID Compliant USB Port(s) |
1 |
Serial Port |
RS232 |
Emergency Power Off (EPO) Port |
Yes |
Audible Alarms |
Battery Mode , Low Battery , Overload , Overcharge , Overheat , UPS Fault , Replace Battery |
Management Cable ( pcs ) |
Power Cord x2 , USB Cable x1 , Phone Line x1 |
Power Management Software |
PowerPanel® Business |
SNMP/HTTP Remote Monitoring |
Yes - with optional RMCARD205 |
|
|
Operating Temperature (°F) |
32 ~ 104 |
Operating Temperature (°C) |
0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % ) |
20 ~ 90 |
Operating Elevation ( feet/meters ) |
0-5,000 feet (0-1,500 meters) |
Storage Temperature (°F) |
-4 ~ 122 |
Storage Temperature (°C) |
-20 ~ 50 |
Storage Relative Humidity (Non-condensing) ( % ) |
10 ~ 90 |
Storage Elevation ( feet/meters ) |
0-5,000 feet (0-1,500 meters) |
Online Thermal Dissipation ( BTU/hr ) |
342 |
Audible Noise at 1.5M from Surface of Unit ( dBA ) |
45 |
