Overview

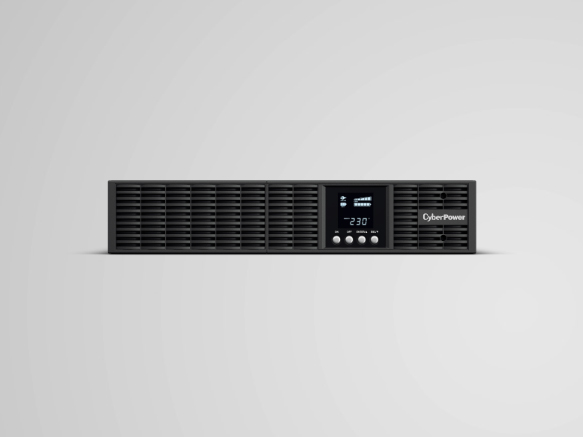

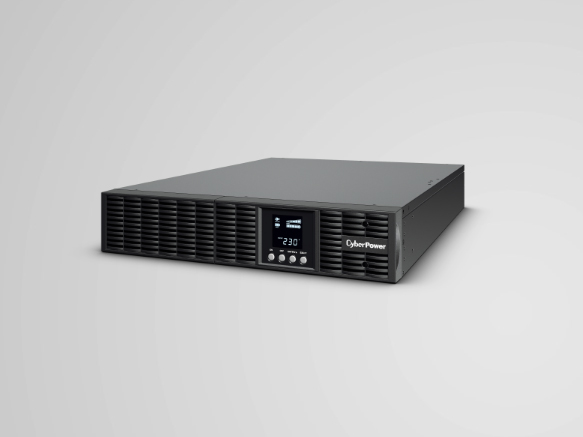

CyberPower OLS3000ERT2U is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.
FEATURES
- - Online (Double Conversion) UPS Topology
- - ECO Mode
- - Generator Compatible
- - Overload Protection
- - Zero Transfer Time
- - Smart Battery Management (SBM)
- - Extended Battery Module (EBM)
- - Surge and Spike Protection
- - EMI and RFI Filtration
- - Phone/Fax/Modem/DSL/Network Protection
- - LCD Status Display
- - Emergency Power Off (EPO) Port
- - PowerPanel® Management Software
- - SNMP/HTTP Remote Management Capability (Optional)
- - Rack/Tower Convertible Configurations
Specification
GENERAL
| Phase | Single Phase |
| UPS Topology | Online Double Conversion |
| Energy Saving Technology | Online ECO Mode Efficiency > 95% |
| Active PFC Compatibility | Yes |
INPUT
| Generator Compatibility | Yes |
| Nominal Input Voltage ( Vac ) | 230 ± 10% |
| Input Voltage Range ( Vac ) | 190 ~ 300 |
| Adjustable Voltage Range ( Vac ) |
0~50% Load for 110 ~ 300 Vac 0~60% Load for 140 ~ 300 Vac 0~80% Load for 160 ~ 300 Vac 0~100% Load for 190 ~ 300 Vac |
| Input Frequency ( Hz ) |
50 ± 10 60 ± 10 |
| Input Frequency Detection | Auto-sensing |
| Rated Input Current ( A ) | 13 |
| Input Power Factor | 0.98 |
| Input Connector Type | IEC C20 |
| Detachable Power Cord Plug Type | NEMA 5-15P |
| Power Cord Length (ft.) | 5.9 |
| Power Cord Length (m.) | 1.8 |
OUTPUT
| Capacity (VA) | 3000 |
| Capacity (Watts) | 2700 |
| On Battery Waveform | Pure Sine Wave |
| On Battery Voltage(s) ( Vac ) |
208 ± 1% 220 ± 1% 230 ± 1% 240 ± 1% |
| Output Voltage Setting | Configurable |
| On Battery Frequency ( Hz ) |
50 ± 0.5% 60 ± 0.5% |
| Output Frequency Setting | Configurable |
| Power Factor | 0.9 |
| ECO Mode Voltage Tolerance | ± 15 % |
| Overload Protection | Internal Current Limiting , Circuit Breaker , Fuse |
| Overload Protection (Line Mode) | 110~120% Load for 1 min, >120% Load Immediately |
| Overload Protection (Battery Mode) | 110~120% Load for 10 sec, >120% Load Immediately |
| Overload Protection (Bypass Mode) | >130% Load Immediately |
| Crest Factor | 3 : 1 |
| Harmonic Distortion (Linear Load) | THD＜3% |
| Harmonic Distortion (Non-linear Load) | THD＜5% |
| Internal Bypass | Automatic Bypass , Manual Bypass |
| Outlet(s) - Total | 9 |
| Outlet Type | IEC C13 x 4 |
| Outlet(s) - Battery & Surge Protected | 4 |
| Typical Transfer Time ( ms ) | 0 |
BATTERY
| Runtime at Half Load ( min ) | 14 |
| Runtime at Full Load ( min ) | 4 |
| Typical Recharge Time ( Hours ) | 5 |
| Maximum Charging Current ( A ) | 1 |
| Start On Battery | Yes |
| Smart Battery Management (SBM) | Yes |
| User-replaceable | Yes - Qualified Personnel Only |
| Hot-swappable | Yes |
| Battery Type | Sealed Lead-acid |
| Replacement Battery Pack | RBP0070 |
| RBP Quantity ( pcs ) | 1 |
| Battery Quantity (Each RBP) ( pcs ) | 6 |
| Battery Voltage (Each RBP) ( V ) | 72 |
| Single Battery Capacity ( AH ) | 12 V 9 AH |
| Extended Battery Module (EBM) | BPSE72V45ART2U |
| Max. EBM Quantity ( pcs ) | 3 |
SURGE PROTECTION & FILTERING
| Surge Suppression ( Joules ) | 440 |
| EMI/RFI Filtration | Yes |
| Phone/Network Protection RJ11/RJ45 (Combo) | 1-in, 1-out |
| Phone Protection RJ11 | 1-in, 1-out |
MANAGEMENT & COMMUNICATIONS
| LCD Panel | Yes |
| LCD Information Display | Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information , Event & Log |
| LCD Setting & Control | Mode Setting , Alarm Setting , Input & Output , Battery Setting |
| HID Compliant USB Port(s) | 1 |
| Serial Port | RS232 |
| Emergency Power Off (EPO) Port | Yes |
| Audible Alarms | Battery Mode , Low Battery , Overload , Overcharge , Overheat , UPS Fault , Replace Battery |
| Management Cable ( pcs ) | Power Cord x2 , USB Cable x1 , Phone Line x1 |
| Power Management Software | PowerPanel® Business |
| SNMP/HTTP Remote Monitoring | Yes - with optional RMCARD205 |
PHYSICAL

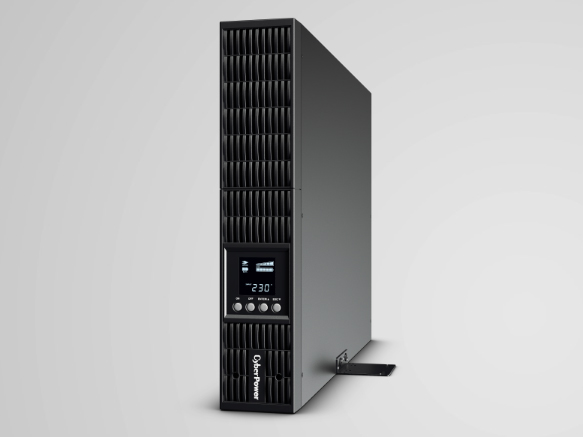

| Form Factor | Rack/Tower |
| Enclosure Construction | Metal |
| Color | Black |
| Rackmount Rail | Yes |
PHYSICAL SIZE - UPS MODULE
| Dimensions (WxHxD) (in.) | 17.24 x 3.46 x 24.2 |
| Dimensions (WxHxD) (mm.) | 438 x 88 x 610 |
| Weight (lbs.) | 60.85 |
| Weight (kg.) | 27.6 |
| Installed Rack Height ( U ) | 2 |
SHIPPING DIMENSIONS
| Dimensions (WxHxD) (in.) | 21.65 x 9.09 x 29.37 |
| Dimensions (WxHxD) (mm.) | 550 x 231 x 746 |
| Weight (lbs.) | 75.4 |
| Weight (kg.) | 34.2 |
ENVIRONMENTAL
| Operating Temperature (°F) | 32 ~ 104 |
| Operating Temperature (°C) | 0 ~ 40 |
| Operating Relative Humidity (Non-condensing) ( % ) | 20 ~ 90 |
| Operating Elevation ( feet/meters ) | 0-5,000 feet (0-1,500 meters) |
| Storage Temperature (°F) | -4 ~ 122 |
| Storage Temperature (°C) | -20 ~ 50 |
| Storage Relative Humidity (Non-condensing) ( % ) | 10 ~ 90 |
| Storage Elevation ( feet/meters ) | 0-5,000 feet (0-1,500 meters) |
| Online Thermal Dissipation ( BTU/hr ) | 1126 |
| Audible Noise at 1.5M from Surface of Unit ( dBA ) | 45 |
CERTIFICATIONS
| Certifications | CE , EAC , LOA |
| RoHS | Yes |
WARRANTY
| Product Warranty Period (Year) | 2 |
| Battery Warranty Period (Year) | 2 |
