Overview

---

CyberPower CPS3500PRO guarantees high-quality power support for security/emergency system, pump, heater/boiler, generator, lighting, and fans. The emergency power system adopts line-interactive topology and surge protected outlets to offer stabilized Pure Sine Wave output. When connected to additional external batteries and generators, the product provides backup power output during power failures by automatically switching from utility to external batteries to ensure seamless operation of devices.

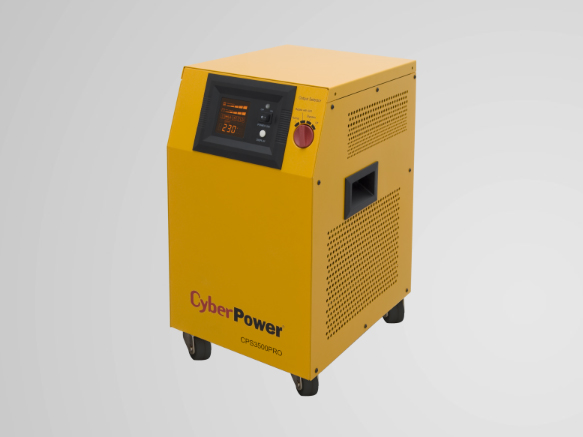

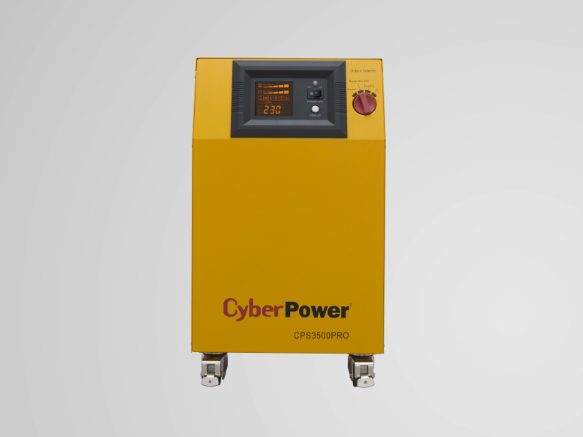

The product features multifunction LCD readout to display precise information of power and battery conditions for convenient system management. The product comes with wheels and carry handle for easy relocation. It is also compatible with PowerPanel® Power Management Software and SNMP/ HTTP card for real-time monitoring and configuration.

FEATURES

• - Generator Compatible
• - Automatic Switch-over
• - Pure Sine Wave Output
• - Automatic Voltage Regulation (AVR)
• - Manual Switch
• - Auto-charge
• - Quick Transfer Time
• - LCD Status Display
• - LED Status Indicators
• - PowerPanel® Management Software
• - SNMP/ HTTP Remote Monitoring Capability
• - Tower Form Factor
• - Wheels and Carry Handle Available

Specification

---

GENERAL

Phase	Single Phase
Capacity (VA)	3500
Capacity (Watts)	2450

INPUT

Generator Compatibility	Yes
Nominal Input Voltage ( Vac )	220 230 240
Input Voltage Range ( Vac )	140 ~ 300 Vac
Input Frequency ( Hz )	50 ± 5 60 ± 5
Input Frequency Detection	Auto-sensing

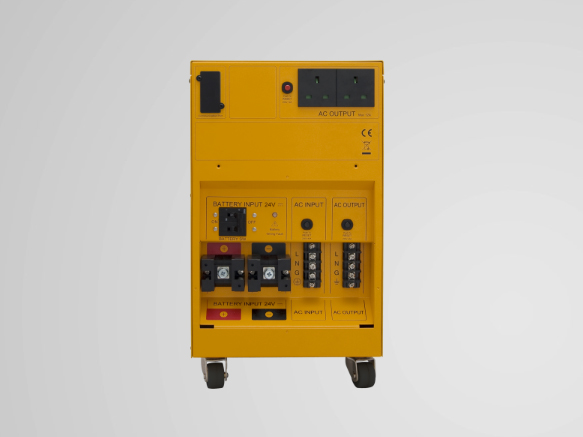

Input Connector Type	Hardwire Terminal Block
DC Input Voltage ( Vdc )	24

OUTPUT

Output Waveform	Pure Sine Wave
Output Voltage(s) ( Vac )	220 ± 5% 230 ± 5% 240 ± 5%
Output Voltage Setting	Configurable
Output Frequency ( Hz )	50 ± 1% 60 ± 1%
Automatic Voltage Regulation (AVR)	Single Boost, Single Buck
Overload Protection (On Utility)	Circuit Breaker
Overload Protection (On Battery)	Internal Current Limiting
Manual Switch	Normal, Bypass with AVR, Bypass, Off
Outlet(s) - Total	3
Outlet Type	Hardwire Terminal Block x 1 UK x 2
Auto-charge	Yes
Typical Transfer Time ( ms )	10

SURGE PROTECTION & FILTERING

Lightning / Surge Protection	Yes

MANAGEMENT & COMMUNICATIONS

LCD Panel	Yes
LCD Information Display	Operation Type , Power Status , Battery Status , Load Status , Other Information , Event & Log
LCD Setting & Control	Alarm Setting , Input & Output , Battery Setting
LED Indicators	Power On , Wiring Fault
Audible Alarms	Battery Mode , Low Battery , Overload , Overcharge , Overheat
Power Management Software	PowerPanel® Business (with optional RMCARD)
SNMP / HTTP Remote Monitoring	Yes - with optional RMCARD205

PHYSICAL

Form Factor	Tower
Enclosure Construction	Metal
Color	Yellow
Wheels	Yes

PHYSICAL SIZE

Dimensions (WxHxD) (mm.)	260 x 440 x 330
Weight (kg.)	36.53

SHIPPING DIMENSIONS

Dimensions (WxHxD) (mm.)	370 x 555 x 445
Weight (kg.)	38.75

ENVIRONMENTAL

Operating Temperature (°C)	0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )	0 ~ 95
Operating Elevation ( feet/meters )	0-10,000 feet (0-3,000 meters)
Storage Temperature (°C)	-15 ~ 45
Storage Relative Humidity (Non-condensing) ( % )	0 ~ 95
Storage Elevation ( feet/meters )	0-50,000 feet (0-15,000 meters)

CERTIFICATIONS

Certifications	CE , EAC , SONCAP
RoHS	Yes

EXTERNAL BATTERY (OPTIONAL)

Battery Type	Sealed Lead-acid
Battery Voltage ( Vdc )	24

WARRANTY

Product Warranty Period (Year)	2
